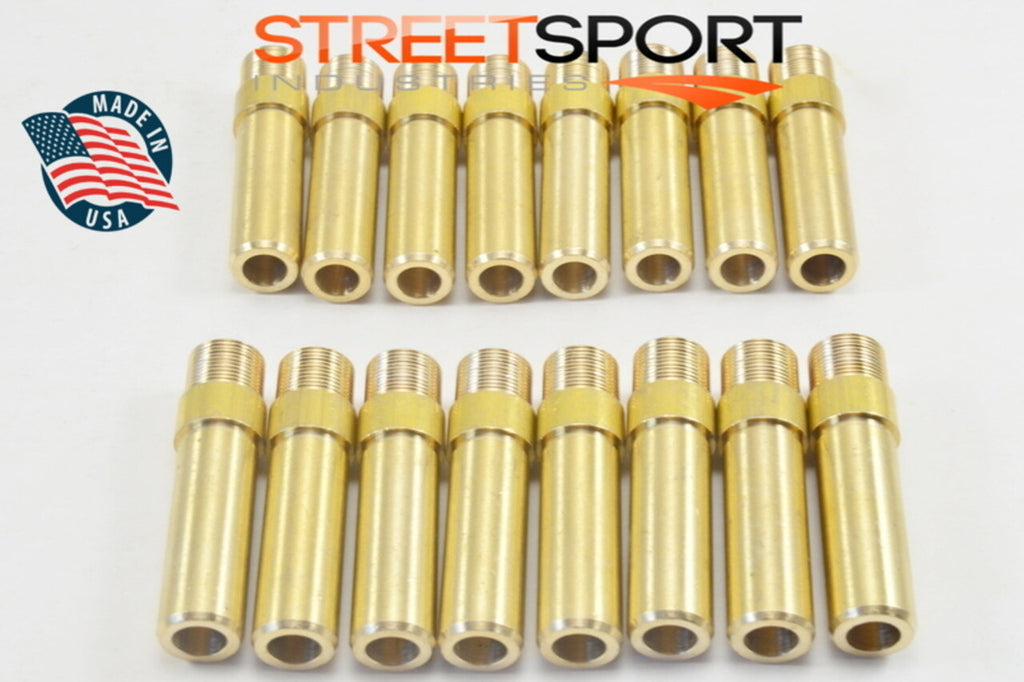

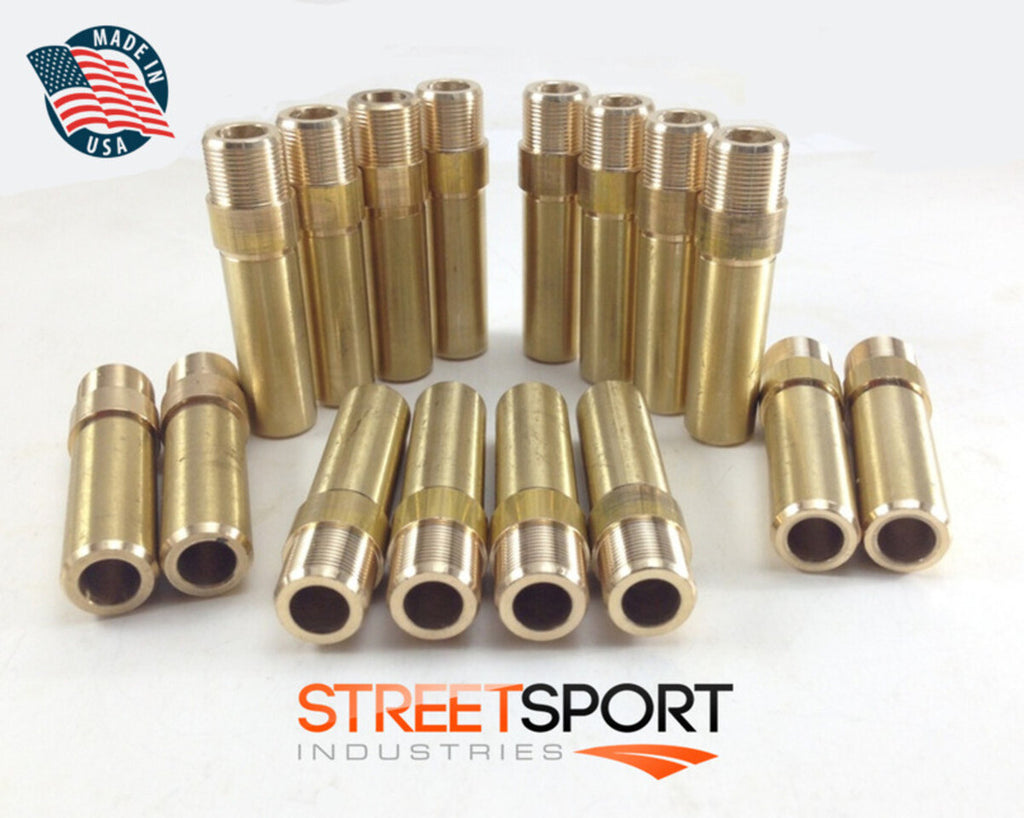

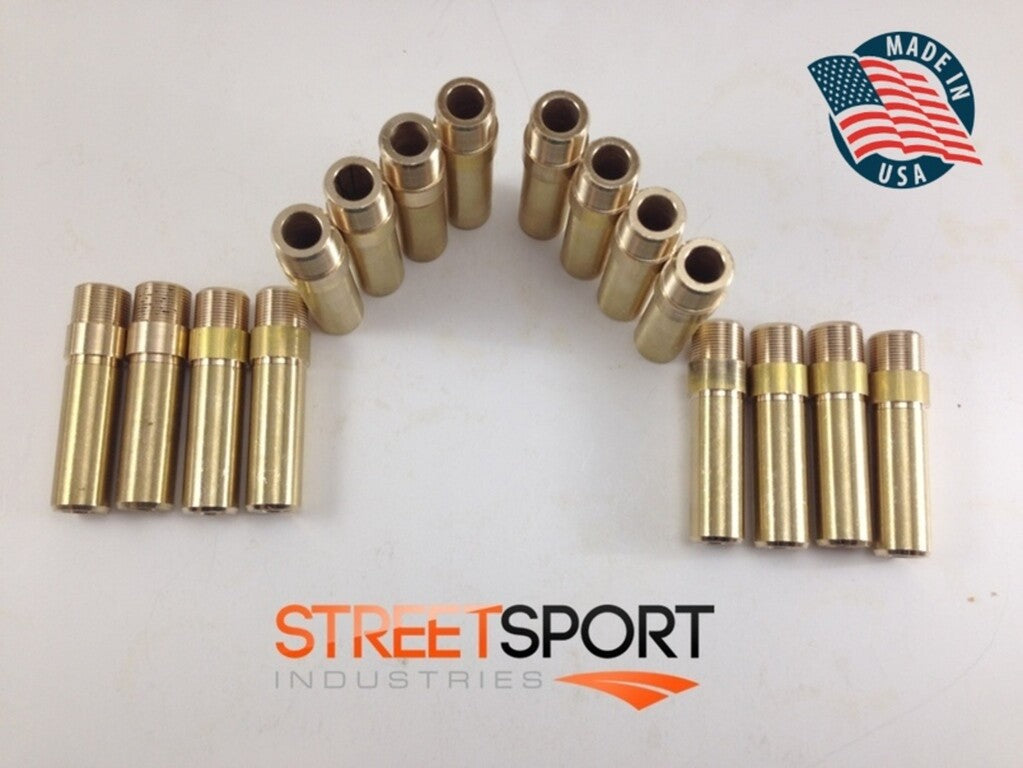

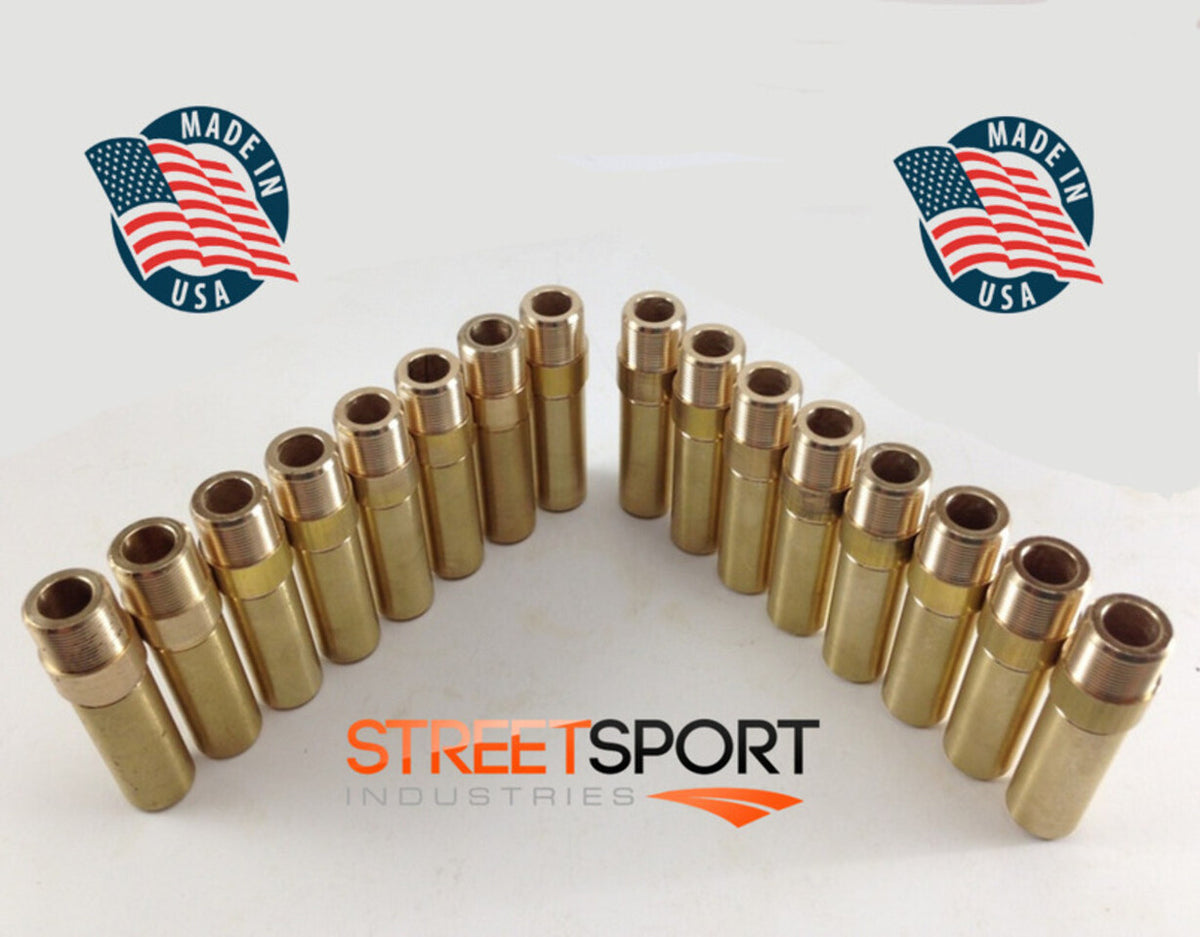

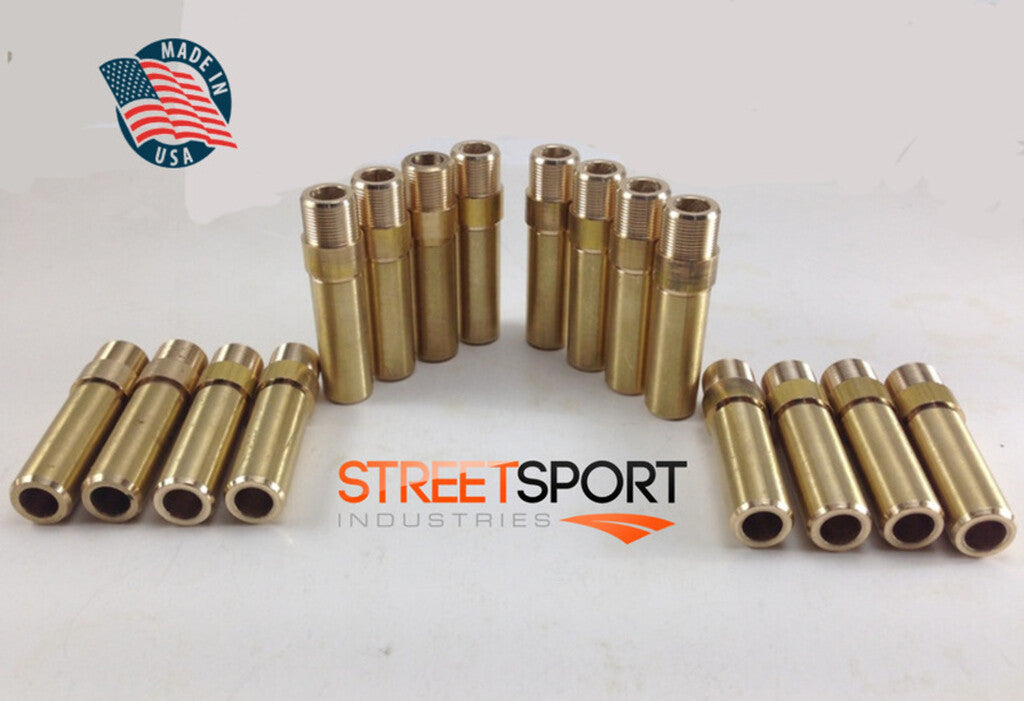

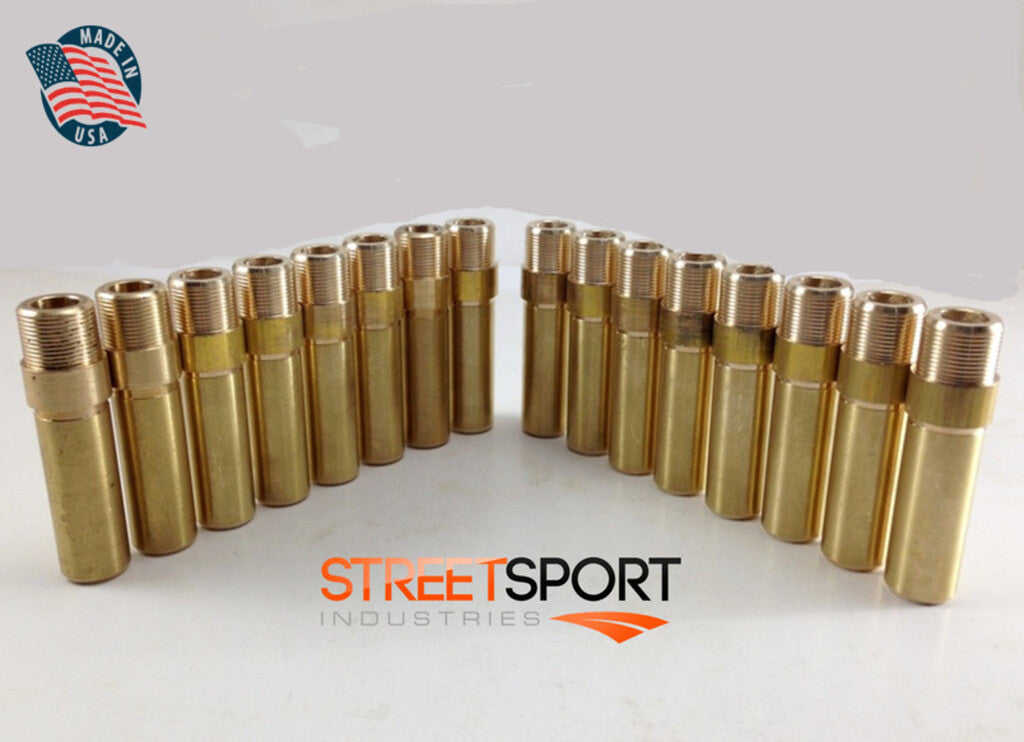

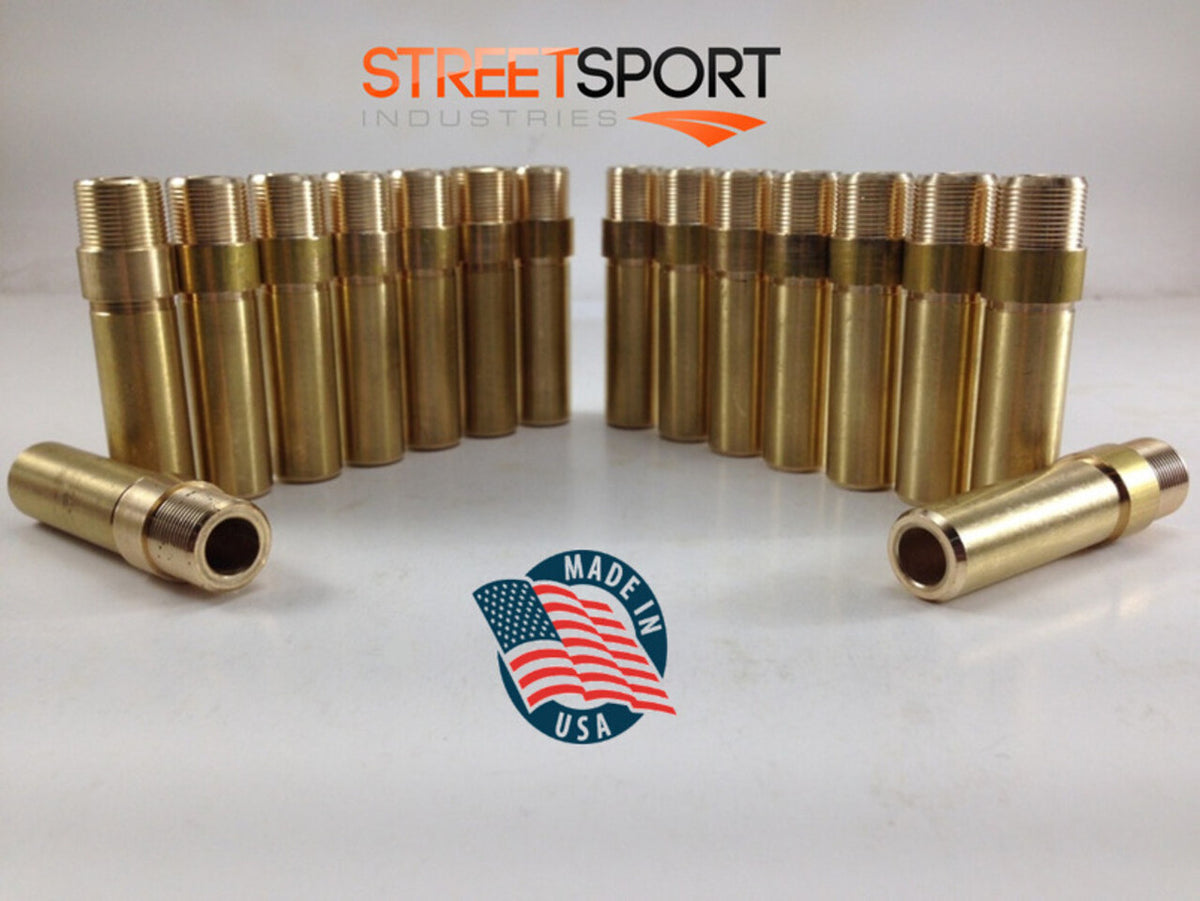

CHEVY/GM LS1 LS2 LS3 LSX AFR Manganese Bronze Valve Guides USA - Set of 16

Fits Chevy/GM LS Series Engines BRONZE "MADE IN USA" Valve Guides - Set of 16 - NEW!!!

This listing is for 1 set of 16 BRONZE guides MADE IN THE USA (8 Intake and 8 Exhaust) to fit the following LS 8mm valve stem heads.....

GM - LS1, LS2, LS4, LS6, LQ4, LQ9, LM7, L59, LR4, LM4, L33, L76, L77, LY2, L20, LY5, LMG, LMF, LY6, L96, LH6, LC9, LH8 and LH9

The specs are as follows . . .

.3105" ID

.500" OD

2.105" Length

.296" step length

.405" seal cut above step

1.395" guide body length under step

NOTE: You must check the size of your valve guide(s) prior to ordering to make sure you receive the correct fit! The guides may have to be reamed or honed according to the tolerance that you want to run on your valve stems.

If you need any of the following items (combinations are discounted in price), just click the link next to the item:

Check out our other listings, we have more guides available!!

These parts are brand new production and made in the USA!!!

The terms LS1, LS3, LS6 or GM® are for descriptive purposes only. The trademark names are listed for reference purposes only. In no way are we or our parts affiliated with the GM® Brand.

Specifications

• Performance Part: Yes
• Country of Origin: United States
• Interchange Part Number: AFR9051
• Material: Bronze
• Vintage Part: Yes
• Type: Single Valve Spring
• Manufacturer Part Number: SSI-CHEV/GMLS-BG
• Lifter Type: Hydraulic Roller
• Valve Type: Exhaust
• Engines:: LS1 LS2 LS4 LS6 LQ4 LQ9 LM7 L59 LR4 LM4 L33 L76
• Engines (Cont.): L77 LY2 L20 LY5 LMG LMF LY6 L96 LH6, LC9, LH8 LH9
• Fitment Type: Direct Replacement
• Universal Fitment: Yes
