GM LS Engine Manganese Bronze Valve Guides + FKM Valve Seals - 16 ea - Gen IV

Fits Chevy/GM LS Series Engines BRONZE "USA" Valve Guides + VITON Valve Seals "METAL CLAD" – Set of 16 Each - NEW!!!

Because eBay restricts the number in the fitment charts, you may not be able to find your vehicle, try the first Gen IV listing here . . .

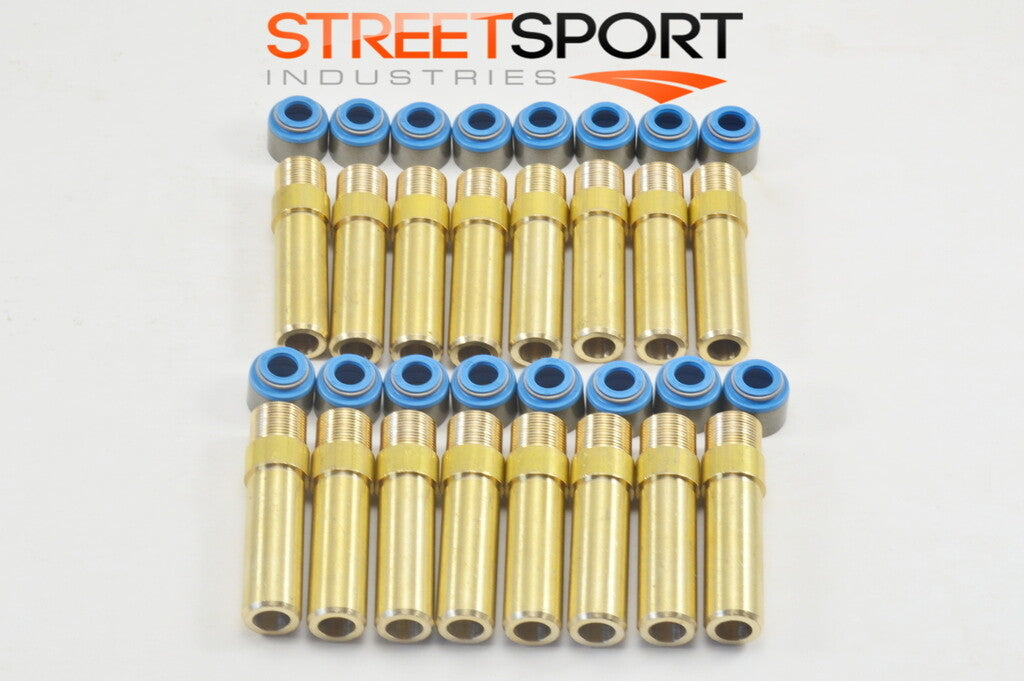

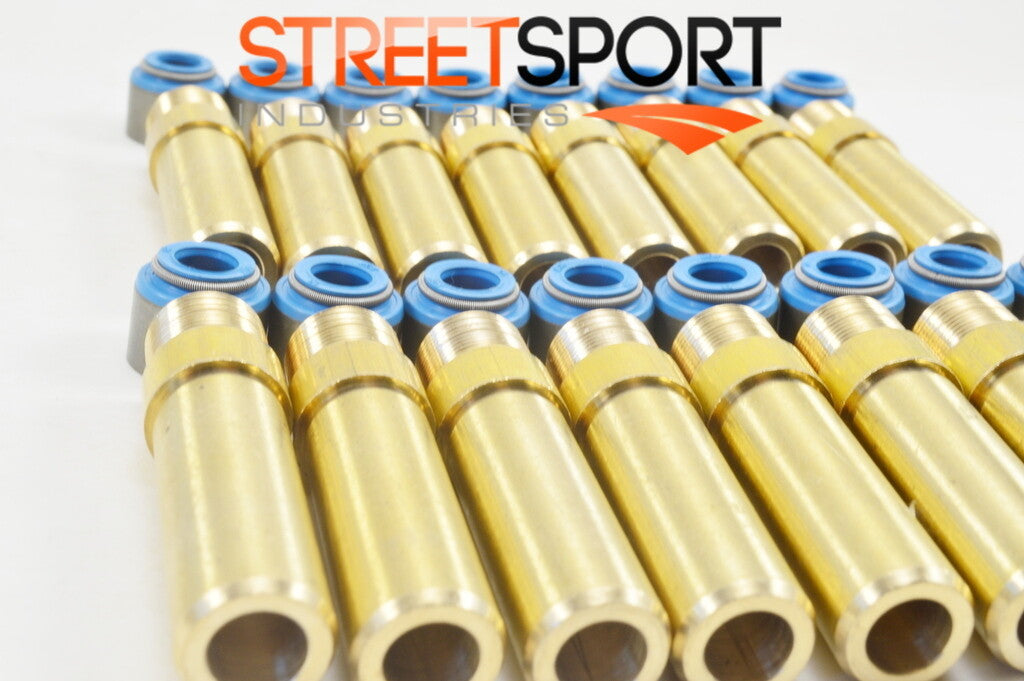

This listing is for 1 set of 16 BRONZE guides MADE IN THE USA and 1 set of 16 VITON metal clad valve seals (8 Intake and 8 Exhaust) to fit the following LS 8mm valve stem heads.....

GM - Gen III: LS1, LS6, LR4, LM7, L59, LM4, L33, LQ4, LQ9 – Gen IV: LS2, L76, L77, LY6, L96, LFA, LZ1, LY2, L20, LMF, LH6, LY5, LMG, LC9, LH8, LH9, LS4, LS7, L92, LS3, L99, LS9, LSA – Gen V: LT1, LT2, L86, L8T, LT4, LT5, L83, L8B, L82, L84 & LV3

Our guides are made from Silicone Manganese Bronze in a USA machine shop. This material dissipates heat the fastest and is a very durable metal to use as a guide. The guides may have to be reamed or honed according to the tolerance that you want to run on your valve stems. Our guides also have a threaded top to prevent metal clad seals from slipping or being pushed off, which is a problem when changing from the OE style hat seals to an aftermarket metal clad seal.

NOTE: You must check the size of your valve guide(s) prior to ordering to make sure you receive the correct fit! The guides may have to be reamed or honed according to the tolerance that you want to run on your valve stems.

This listing is for all 16 (8 intake, 8 exhaust) Manganese BRONZE USA Made valve guides + VITON seals.

The specs for the guides are . . .

.3105" ID

.500" OD

2.105" Length

.296" step length

.405" seal cut above step

1.395" guide body length under step

If you need any of the following items (combinations are discounted in price), just click the link next to the item:

Check out our other listings, we have more guides available!!

WHY BUY VITON SEALS?

Viton and other seals have several very crucial differences that make them especially well suited to certain applications. While both Viton and other seals both serve as great sealing options at moderate temperatures, Viton is far superior to other seals for high temperature applications. Viton seals provide an indefinite seal for temperatures up to 400°F, and for temperatures up to 600°F they offer an excellent seal for more than 48 hours. Valve seals made of non-Viton materials, such as Poly, are only effective up to 250°F.

These are brand new production seals. Viton has good flexibility like Nitrile, which means it can handle some runout between the valve stem and guide. It is also considered to be a more durable material than silicone. Viton also has better wear resistance than most other seal materials, making it a good choice for applications where long term durability is a must.

Viton seals provide less friction as well, due to 5% Teflon.

We also have these for most other engines if needed, so check out our other listings

These parts are brand new production!!!

The terms LS1, LS6 or GM® are for descriptive purposes only. The trademark names are listed for reference purposes only. In no way are we or our parts affiliated with the GM® Brand.

The above described product is designed to fit (in addition to the fitment chart) . . .

2008-2017 Drakan Spyder – 6.2L – LS3

2010–2016 Rally Fighter – 6.2L - LS3

2009-2009 Equus Bass 770 - – 6.2L - LS9

2011 Jensen Interceptor R – 6.2L - LS3

2006 Vertical Hummingbird helicopter – 7.0L – LS7

2012 New Zealand V8 SuperTourer – 7.0L – LS7

2012–Present Falcon F7 – 7.0L - LS7

2014 Korres P4 – 7.0L - LS7

2007 CSV GTS – 7.0L - LS7

2008 Spada Codatronca – 7.0L - LS7

Specifications

• Country of Origin: United States
• Interchange Part Number: 9056, AFR-9056, 511-16
• Material: Manganese Bronze
• Type: Intake and Exhaust Valve
• Engines:: L98 L77 LY6 L96 LFA LZ1 LY2 L20 LH6 LY5 LMG LC9
• Manufacturer Part Number: SSI-CHEV/GMLS-BG&MCVVS
• Engine Sizes: 4.8 4.8L 5.3 5.3L 6.0 6.0L 6.2 6.2L 7.0 7.0L
• Engines (Cont.): LH8 LH9 LS4 LS7 L92 LS3 L99 LS9 LSA
• Fitment Type: Direct Replacement
