.560" Lift Beehive Valve Springs w/ Seals for 02 - UP Chevrolet Gen II III IV LS

.560" Lift Beehive Valve Springs w/ Seals for 2002 - UP - Chevrolet Gen II, III & IV LS - TOP HAT - Set of 16 - NEW!!

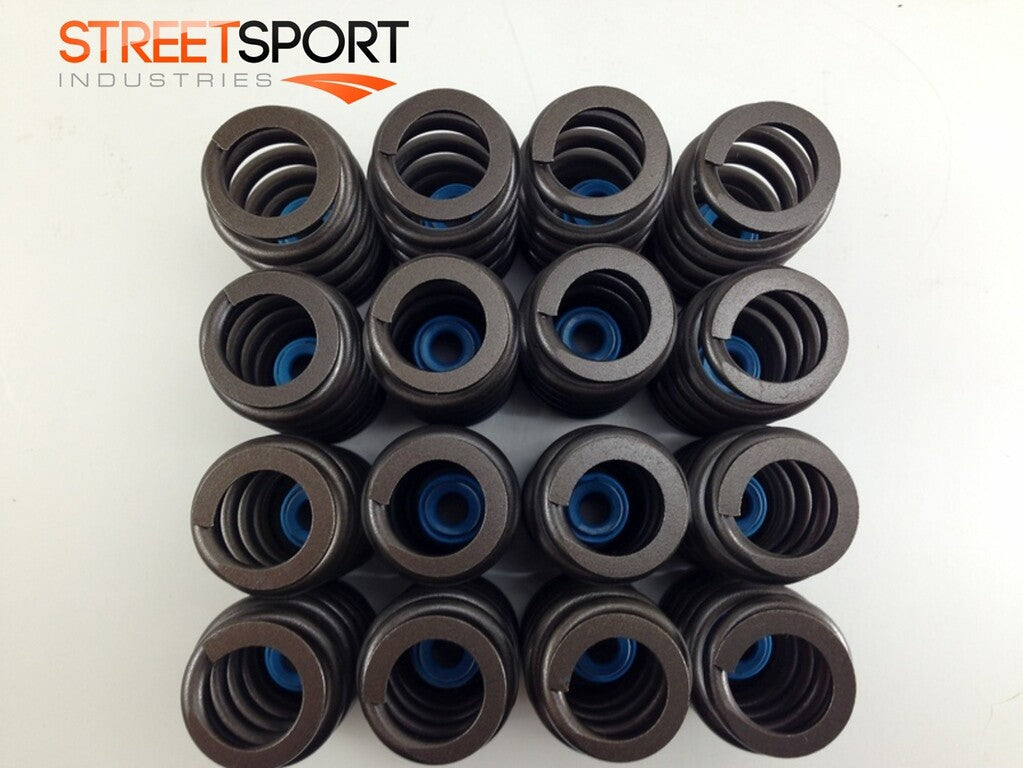

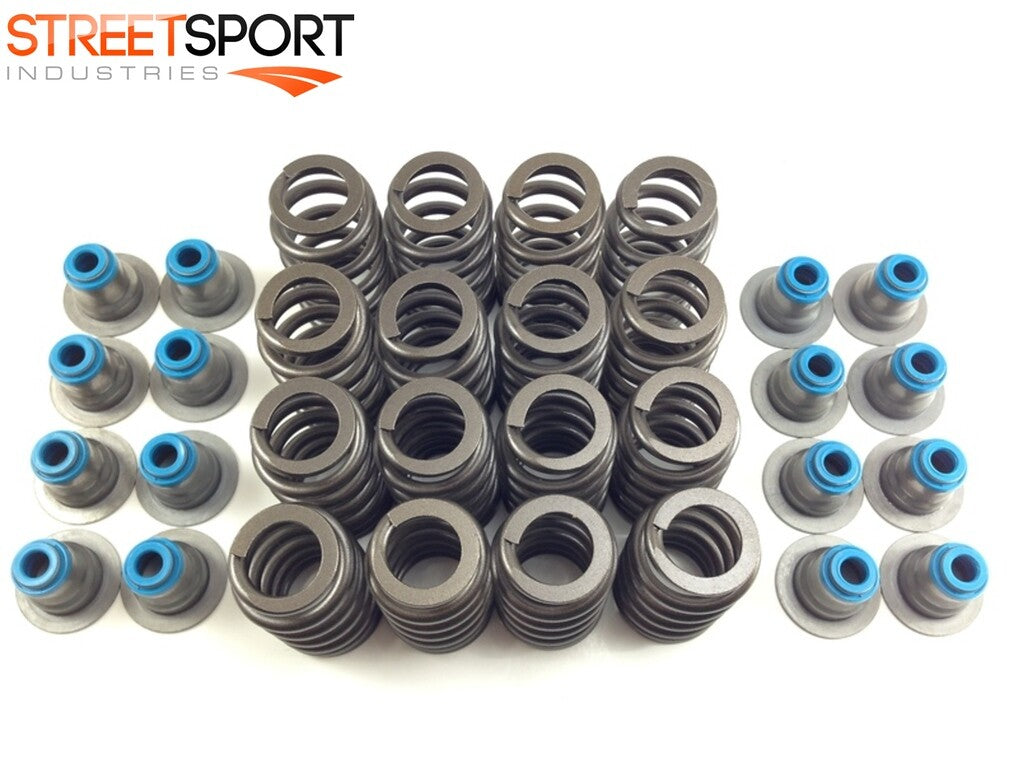

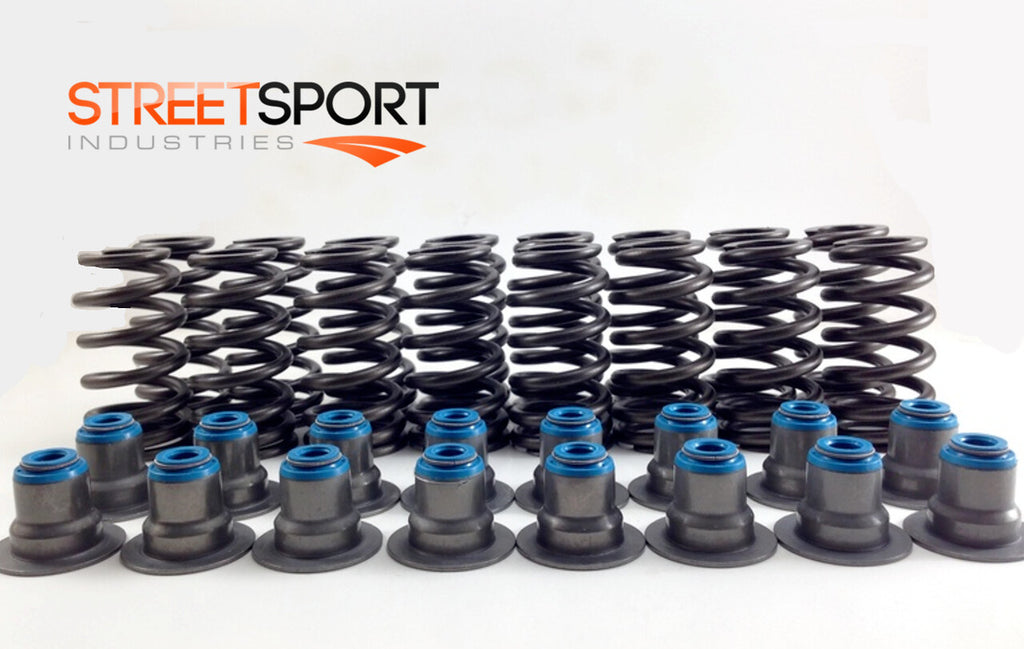

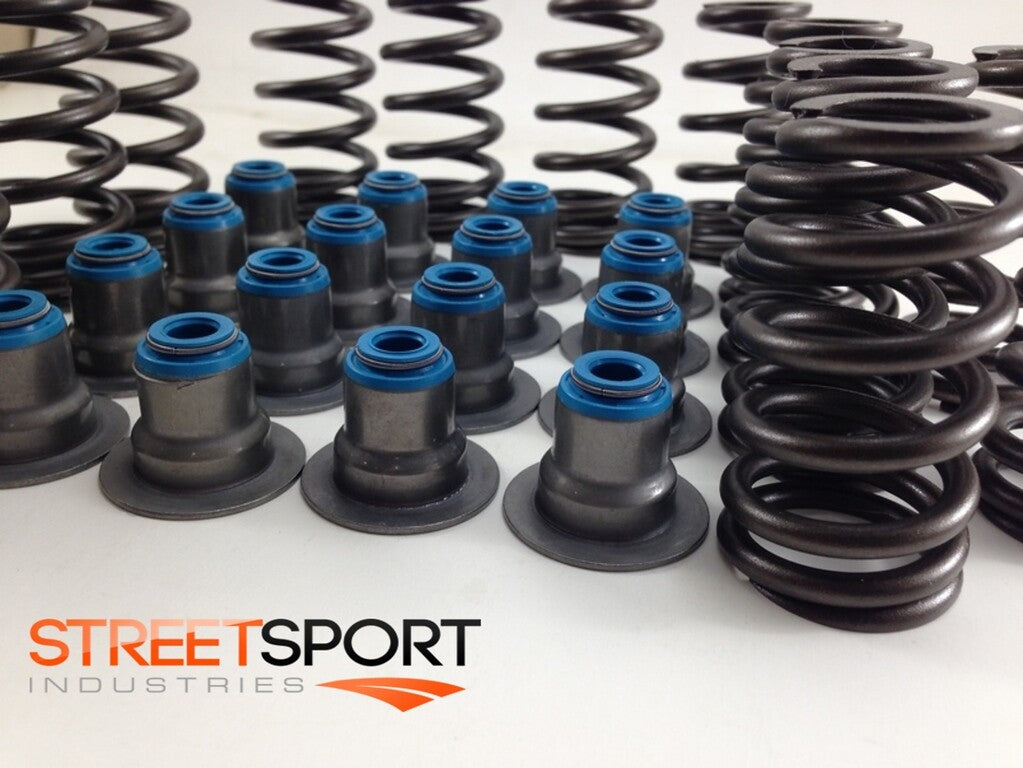

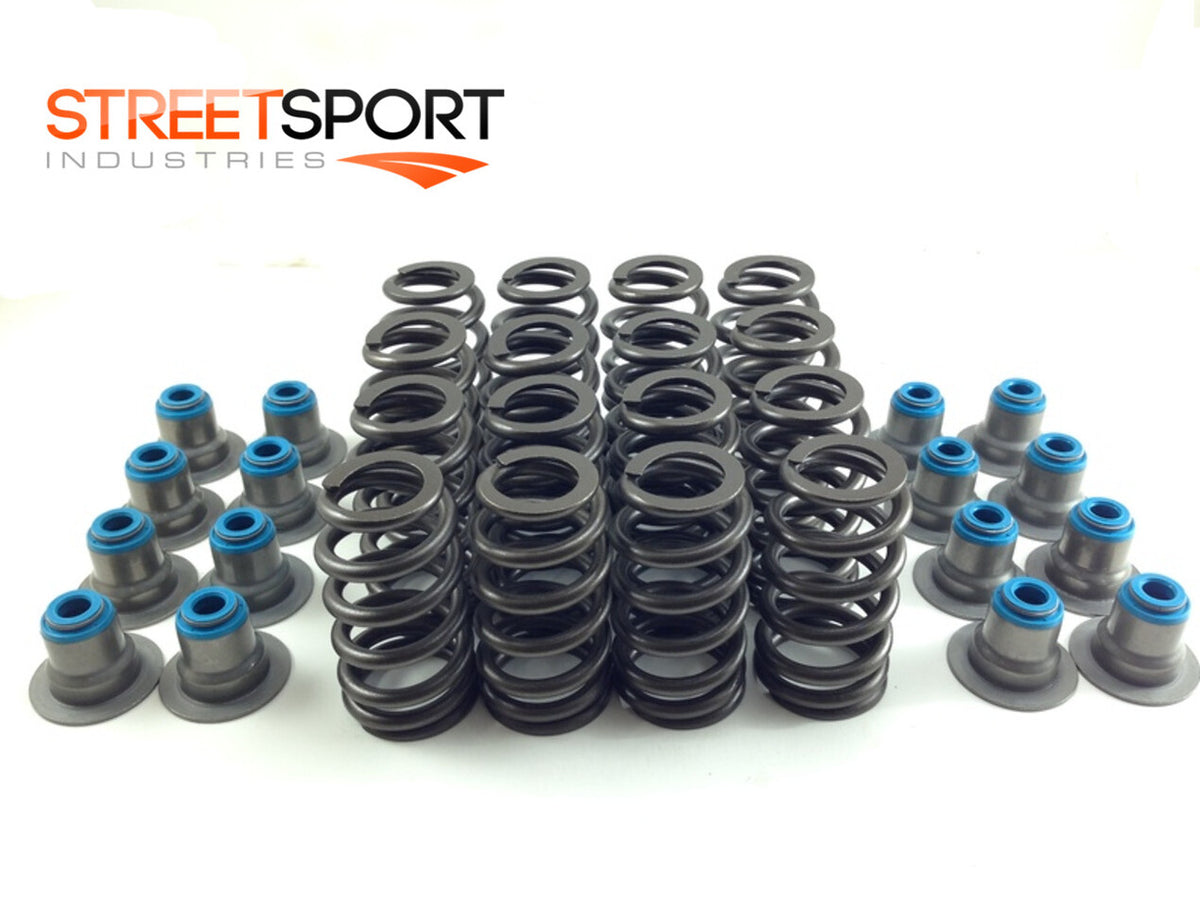

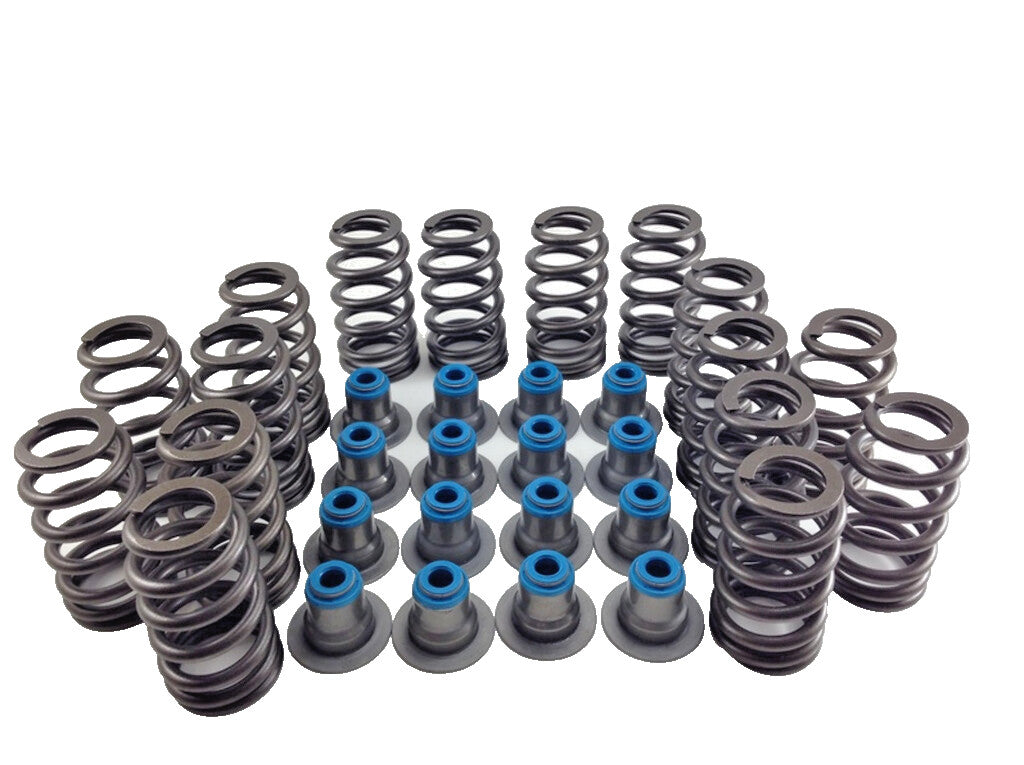

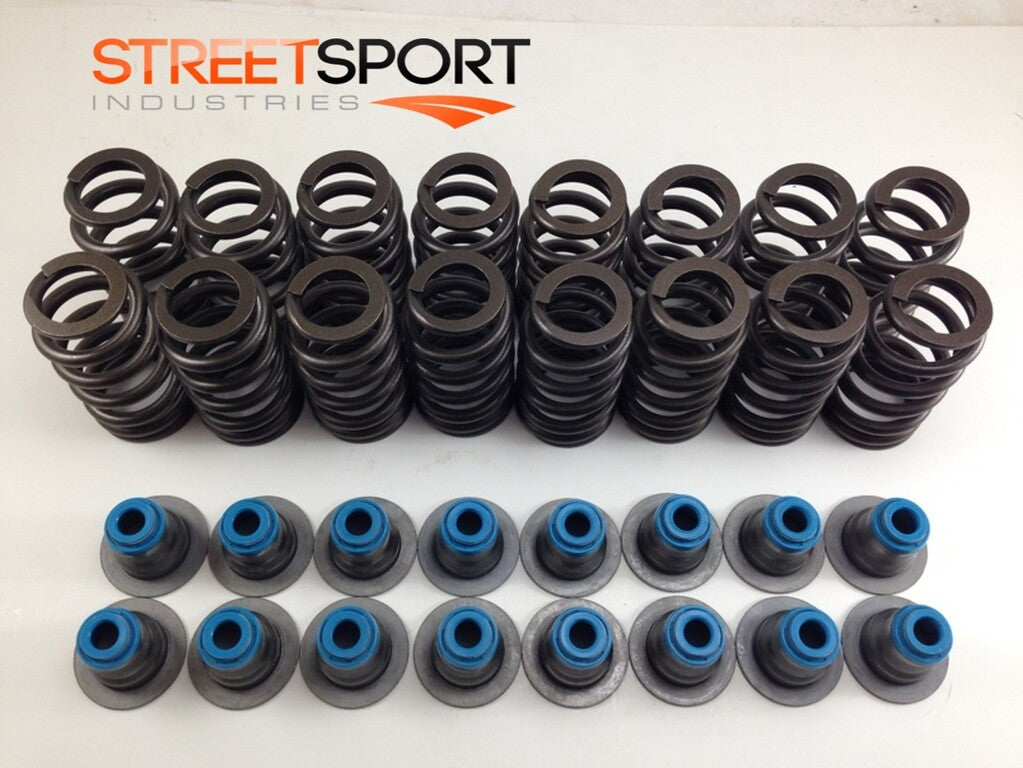

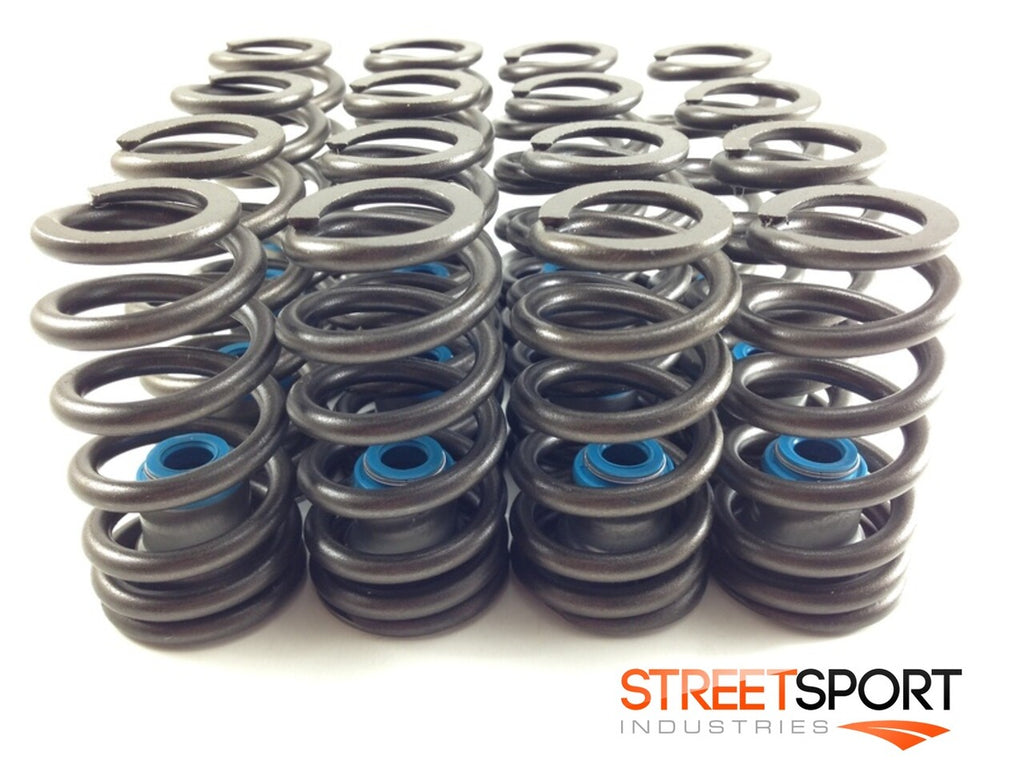

This listing is for a brand new set of 16 Bee Hive Valve Springs and 16 VITON valve seals (8 intake and 8 exhaust) to fit any of the following:

GM - LS1, LS2, LS4, LS6, LQ4, LQ9, LM7, L59, LR4, LM4, L33, L76, L77, LY2, L20, LY5, LMG, LMF, LY6, L96, LH6, LC9, LH8 or LH9 for the 2002 to 2020+ model years!

Included are a complete set of 16 valve springs with 16 Top Hat viton valve seals

Fits GEN II, III & IV LS style engines (4.8L, 5.3L, 5.7L, 6.0L, 6.2L & 7.0L)

107 lbs @ 1.800"; 285 lbs @ 1.240"

.560" Max Lift

Beehive design

Works with stock retainers & locks

This combination includes a full set of (16) High Grade Viton "Top Hat" Valve Seals. These valve seals fit the LS (4.8L, 5.3L, 5.7L, 6.0L, 6.2L & 7.0L GM) engines with .313" stem valves and guide boss machined to .500".

These are the design with the retainer that sits under the valve spring, aka "Top Hat" design. Fits all LS engines with single valve springs.

These are some of the best valve seals on the market because they are made out of Viton!!

NOTE: You must check the size of your valve guide(s) prior to ordering to make sure you receive the correct fit!

THE HIGHEST QUALITY AND CORRECT "TOP HAT" SEALS FOR LS ENGINES.

If you need any of the following items (combinations are discounted in price), just click the link next to the item:

WHY BUY VITON SEALS?

Viton and other seals have several very crucial differences that make them especially well suited to certain applications. While both Viton and other seals both serve as great sealing options at moderate temperatures, Viton is far superior to other seals for high temperature applications. Viton seals provide an indefinite seal for temperatures up to 400°F, and for temperatures up to 600°F they offer an excellent seal for more than 48 hours. Valve seals made of non-Viton materials, such as Poly, are only effective up to 250°F.

These are brand new production seals. Viton has good flexibility like Nitrile, which means it can handle some runout between the valve stem and guide. It is also considered to be a more durable material than silicone. Viton also has better wear resistance than most other seal materials, making it a good choice for applications where long term durability is a must.

Viton seals provide less friction as well, due to 5% Teflon.

We also have these for most other engines if needed, so check out our other listings

These parts are brand new production!!!

The terms LS1, LS3, LS6 or GM® are for descriptive purposes only. The trademark names are listed for reference purposes only. In no way are we or our parts affiliated with the GM® Brand.

Specifications

• Interchange Part Number: RV3598, ERV1415, SP011-16, 12499224
• Lifter Type: Hydraulic Roller
• Material: FKM
• Valve Type: Intake and Exhaust
• Type: Valve Spring Set
• Manufacturer Part Number: SSI-LS0219-SPRINGS&SEALS
• Engines:: LS1 LS2 LS4 LS6 LQ4 LQ9 LM7 L59 LR4 LM4 L33 L76
• Engines (Cont.): L77 LY2 L20 LY5 LMG LMF LY6 L96 LH6, LC9, LH8 LH9
• Engine Sizes: 4.8, 5.3, 5.7, 6.0, 6.2, 7.0
• Fitment Type: Direct Replacement
• Performance Part: Yes
• Universal Fitment: Yes
• Country of Origin: United States
